Description

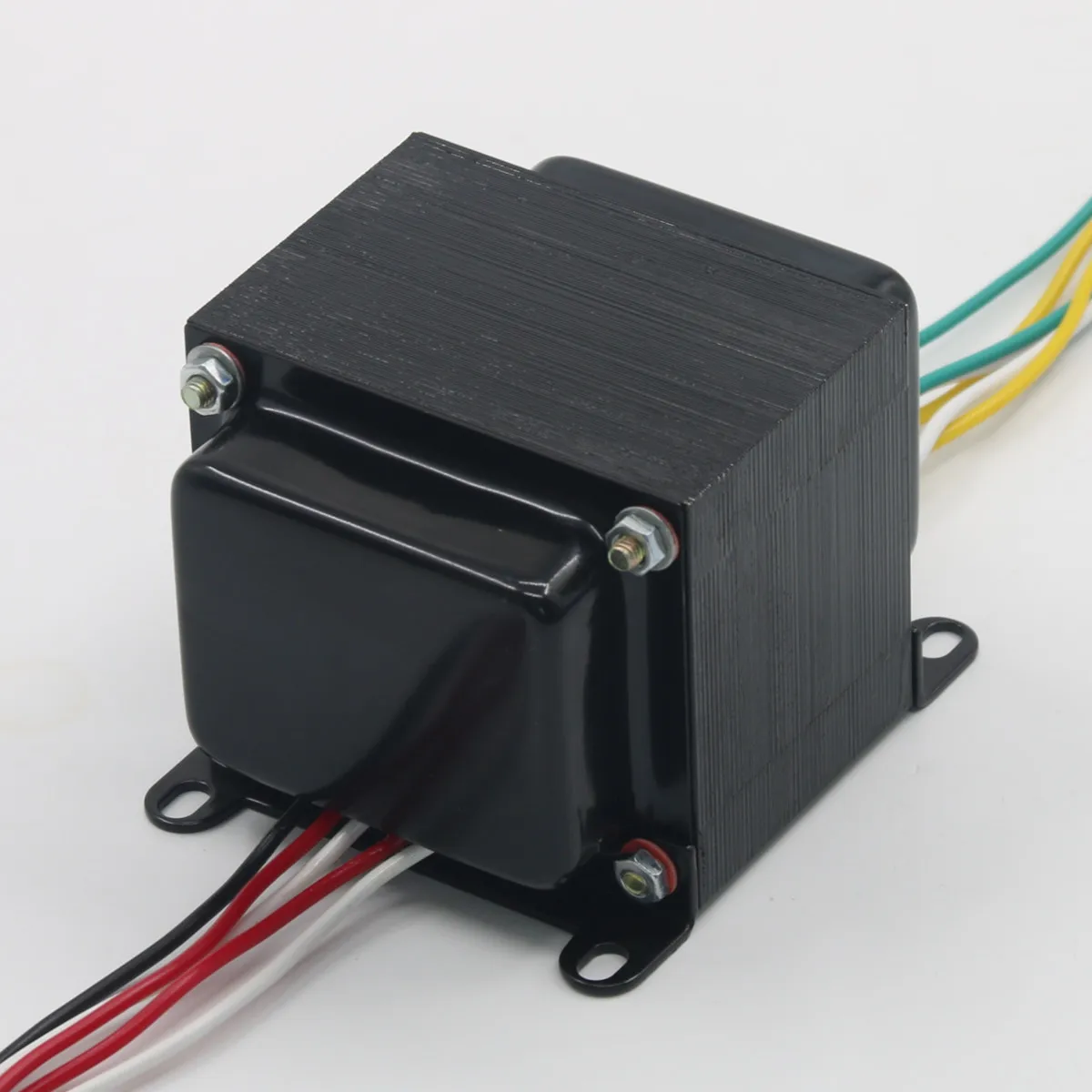

230V-0-230V@100mA 3.15V-0-3.15V@3A Power Transformer is a good choice for 12-14 watt push-pull type amplifier build, or a 5-10 watt single ended. Running a 6AX5 or parallel 6X4 rectifiers will leave room for 3 dual triode preamp tubes and 2 6v6s.
- Package:Â Yes
- Channels:Â 2 (2.0)
- Model Number:Â ZL764504
- Maximum Power Per Channel:Â 65W
- Brand Name:Â SENGTERBELLE
- Origin:Â Mainland China
- Certification:Â CE
Product Details:
Input voltage: 0~115V, 0~115V
A shielding layer is added between the primary and secondary
Output voltage: 230V~0~230V@0.1A; 3.15V~0~3.15V@3A
Rated power: 65W
Frequency characteristics: low frequency
Core shape: EI type 76*50
Structure form: single phase transformer
Dimensions (W*H*D): 76*67*90MM
Net weight: about 1.9KG
Package list:
1 × Power Transformers
Tip: We also can accept custom-make all other kinds of voltage and other power rate. if you need please contact us.
