Description

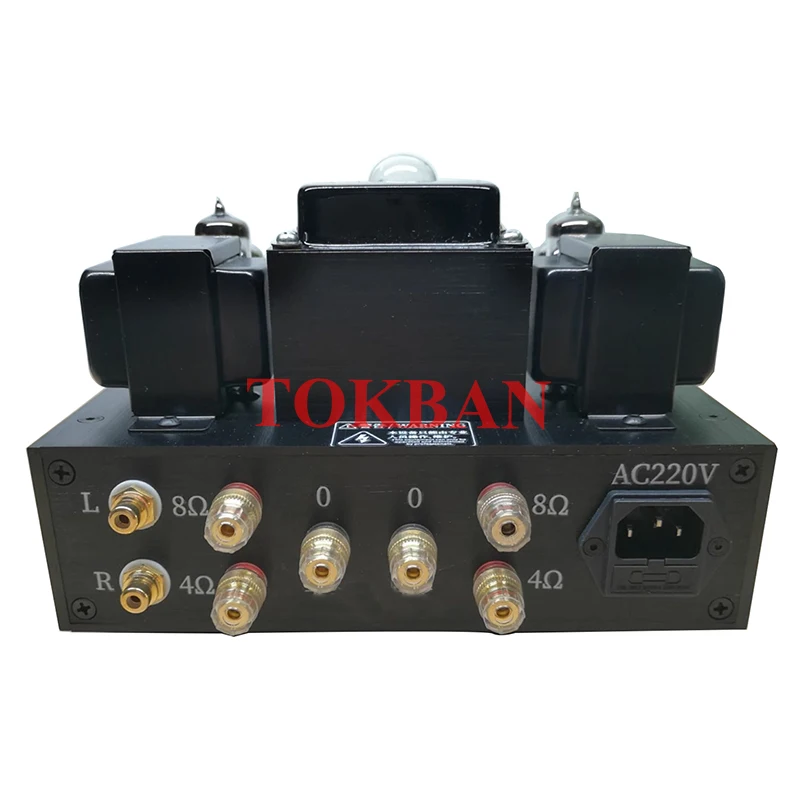

Tokban A05 6n2 6p1 Vacuum Tube Amplifier DIY Kit High-power 3.2w*2 2-channel Tube Amp Vu Meter HIFI Class A Amplifier Audio has multiple configurations.
Please carefully choose your input voltage. US=110V
- Package: Yes
- Channels: 2 (2.0)
- Model Number: Tokban 6n2 6p1
- Maximum Power Per Channel: 4W
- Brand Name: TOKBAN
- TOKBAN Model: A05
- Origin: Mainland China
- Certification: none
- Product type: Amplifier audio
- Amplifier types: Vacuum tube amplifier, 2-channel amplifier, HIFI amplifier, Class A amplifier, single ended amplifier
- Color: Silver
- Output power: 3.2w+3.2w
- Input impedance: 100k ohms
- Output impedance: 4-8ohms
- Rectifier tube: 5Z2P
- Power transistor tube: 6P1
- Front amplifier tube: 6N2
- Vu meter: ST-39
- Size: 216*230*140mm
Tokban A05 6n2 6p1 Vacuum Tube Amplifier DIY Kit High-power 3.2w*2 2-channel Tube Amp Vu Meter HIFI Class A Amplifier Audio
Attention:
- When testing the machine, the speaker or speaker must be connected first. Empty load testing can easily burn out the output transformer or vacuum tube, and our store is not responsible for such damage.
- The package includes drawings and physical connection diagrams.
- Please contact me if there are any issues during the assembly process.
Product Introduction:
- 6n2+6p1, Class A vacuum tube amplifier, overall low-frequency, intermediate frequency, and high frequency are relatively balanced, with full low-frequency sense and force, warm and mellow intermediate frequency, and clear high-frequency layers.
- A carefully designed PCB circuit board, with electronic tube filaments connected by AC twisted pair cables, achieves perfect bottom noise control.
- The power supply adopts multi-stage capacitor filtering, making the front stage work more stable and ensuring that the power supply voltage is also very stable during music bursts, ensuring no distortion and stable operation.
- This amplifier uses 6N2 and 6P1 as a Class A amplifier circuit, with an output power of 3w+3.0w. The required impedance for driving the speaker is 4-8ohms. It is recommended to use a split frequency speaker with a power of 30-80w and a sensitivity of 89dB or above.
Parameters:
- Output power: 3.2w+3.2w
- Frequency response: 20Hz-20kHz
- Input impedance: 100k Ω
- Output impedance: 4-8 Ω
- SNR: 90dB
- Input sensitivity: 500mV-2000mv
- Size: 216*230*140mm (width*depth*height)
Vacuum tube:
- Rectifier tube: 5Z2P (can be upgraded to 5Z4P)
- Power tube: 6P1 * 2
- Front amplifier tube: 6N2 * 2
- VU meter: ST-39 (diameter 34mm)
