Description
AC 110V / 50Hz EI48*24 power transformer 10W 110V to 12V 1A AC 12V (single output) 110V input 10VA is the USA power transformer intended for tube preamp kit, and other uses.
This product has passed the national voluntary CQC quality certification
Certification No.: cqc040001011449
Manufacturer: Shenzhen Caixing Electronic Co., Ltd.
Product Name: power transformer
Brand: Caixing
Core model: EI48 * 24
Rated power: 10W
Input voltage: AC 110V / 50Hz
Output voltage: AC 12V (single output)
Frequency characteristics: low frequency
Core shape: EI type
Moisture proof mode: open type
Cooling mode: natural cooling
Cooling mode: Inflatable
Structure: single phase transformer
Net weight: 0.36kg

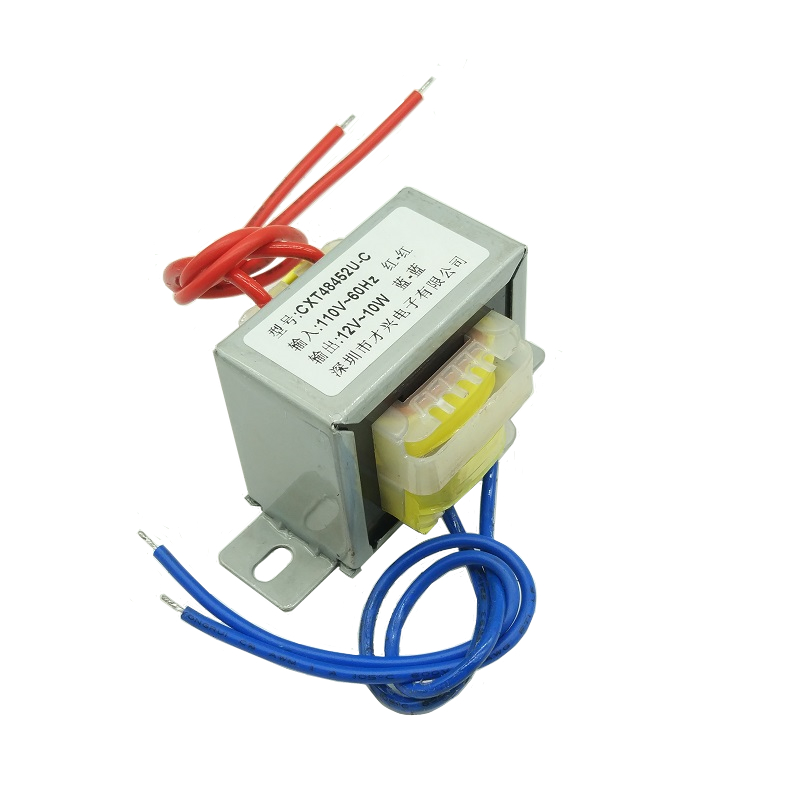

Linear: two red lines are input lines and two blue lines are output lines

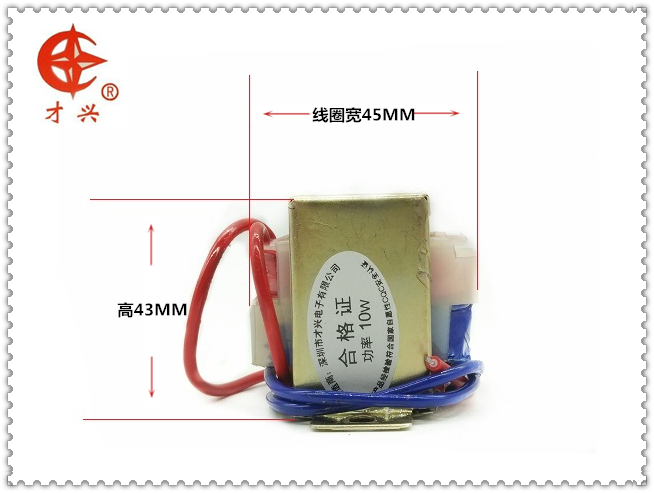

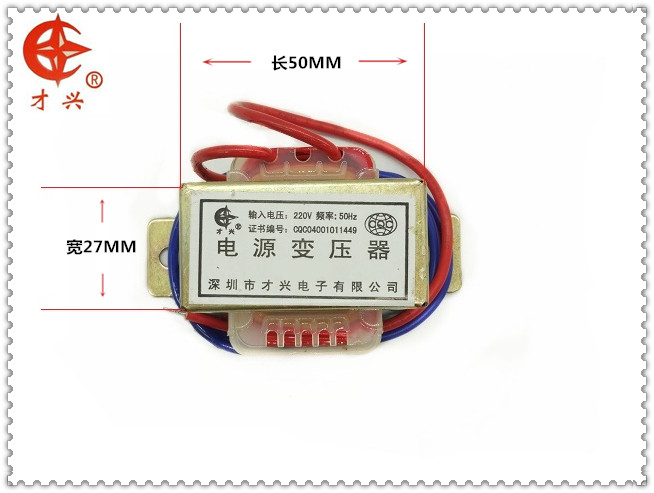

Boundary dimension: 50mm * 26mm * 43mm (Core: length * width * height)

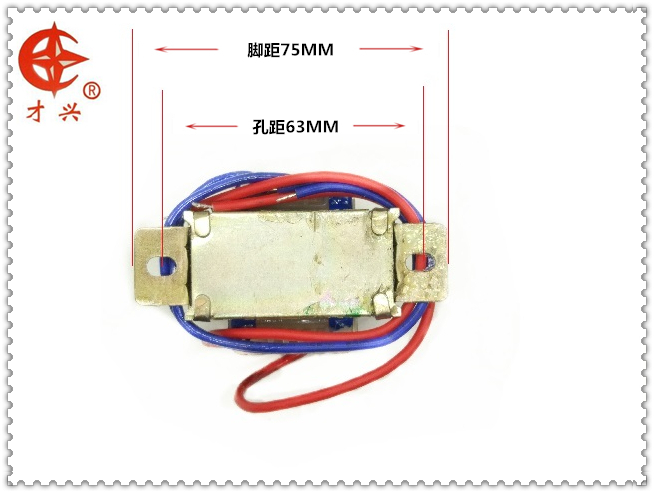

Coil width: 45mm pitch: 75mm pitch: 61mm
