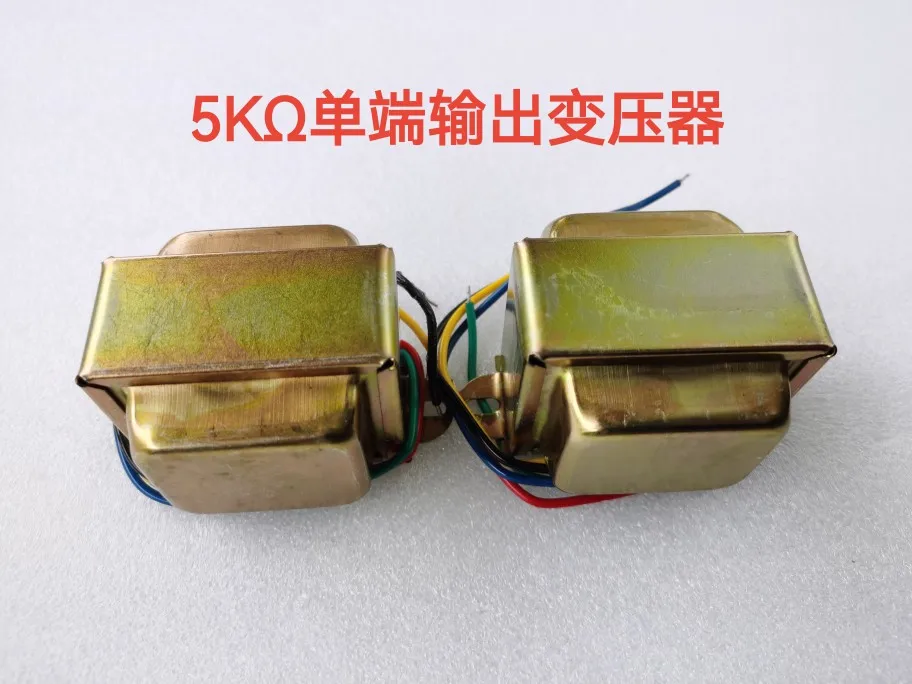

5K 5W single ended output transformer is suitable for 6V6 6P1 6P14 6P6P single ended

Description

5K 5W single ended output transformer is suitable for 6V6 6P1 6P14 6P6P single ended. These are good options if you’re looking to display your amp and need a sharp looking transformer to compliment those pretty tubes:)

EI57 iron core

Output transformer power of 5K Ω Power handling of 5W

Skeleton 57X26

(Core width 19. Stacked thickness 25)

Impedance 5 K

Secondary 0-4 Ω -8 Ω

DC resistance; 330 Ohms

Inductance; 14H

Long; 60mm

Wide; 55mm

High; 50mm

Center-to-center distance of mounting hole; 73mm

Shielding method; Full package shielding case.

All the raw materials of our company’s products are made of EI series annealed silicon steel sheets, high-temperature resistant and oxygen free copper rod drawn enameled wires

Weight; Approximately 0.56kg
