Description

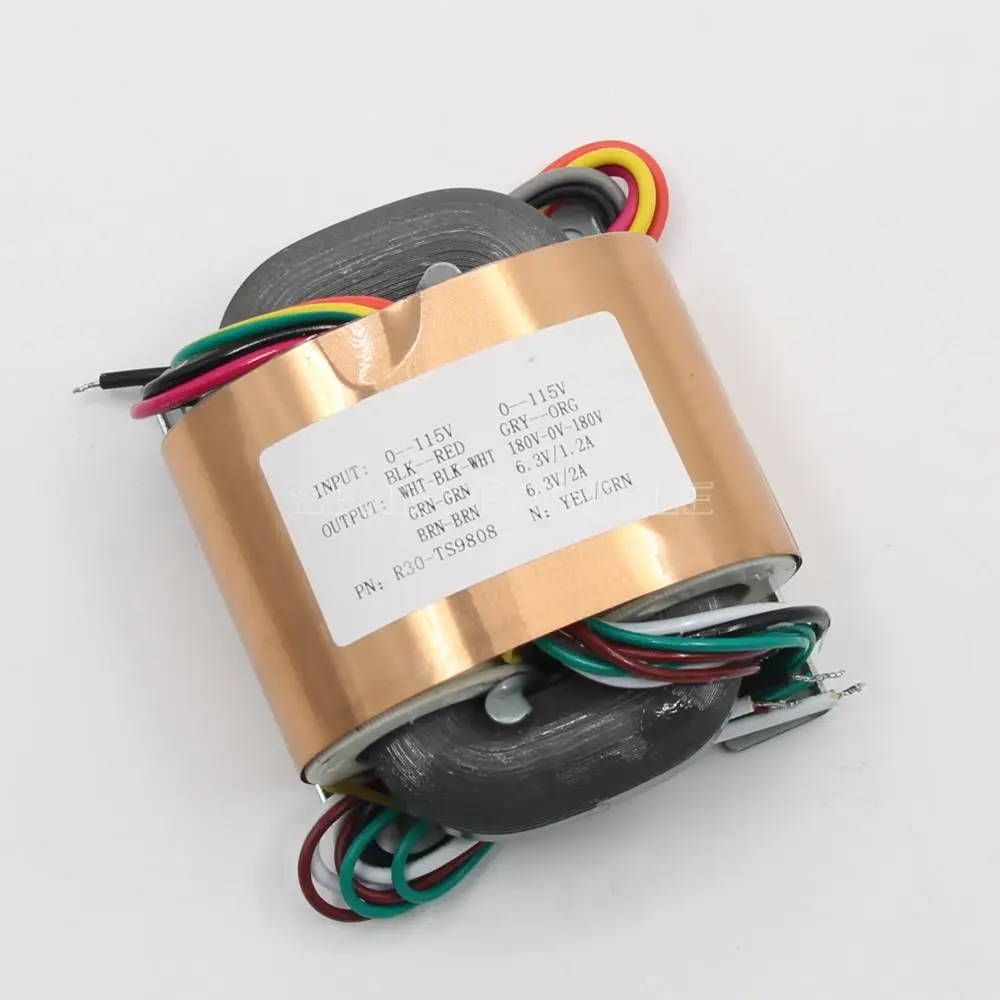

40W R Core Audio Transformer 40VA 180V-0-180V 0-6.3V*2 has me wanting to design and build a 4 watt guitar tube amp using a 6W6 output, 6N2 preamp, 6X4 rectifier, and possibly another 6N2 for tremolo:)
Product Details:
Rated power: 40W
Input voltage: 0-115V, 0-115V
Output voltage: 180V-0-180V, 0-6.3V(1.2A), 0-6.3V(2A)

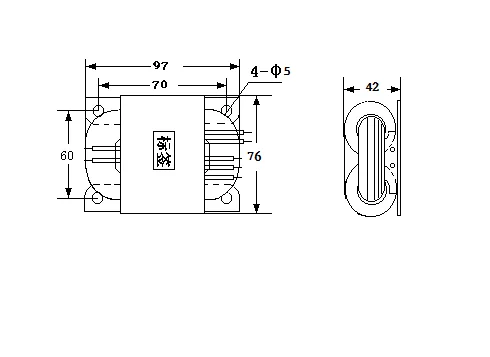

Dimensions(W*H*D): 76*42*97MM
Net weight: about 0.77KG
Package list:
1 × 40W R core transformer
Tip: We also can accept custom-make all other kinds voltage and other power rate. if you need please contact us.
